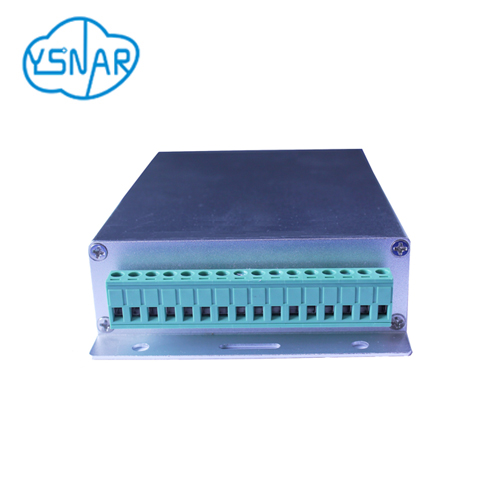

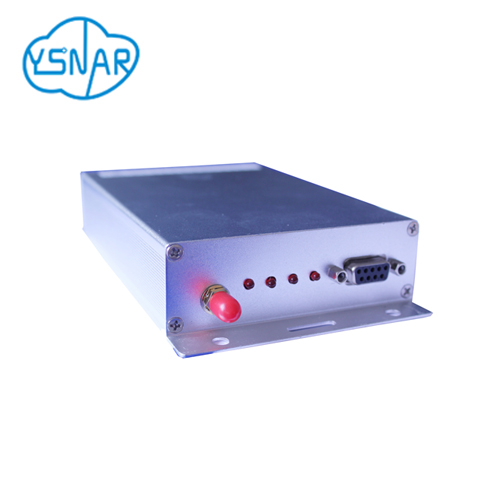

YS-106R Analog Wireless Acquisition Module has thefunction for analog acquisition and wireless transmission, do not re-empolder，it can achieve the function for wireless remote controlling andcollecting data with a low cost. It is industrial design and has a wide worktemperature so that can meet client’s requirement for whole day using. Besides,the RF adopts narrowband FM and has high anti-jamming. Accord with EN300220.

I、Feature:

1、Analog: two channels 0-5V voltage input andtwo channels 0-5V voltage output

2、Power supply: 12-14V,providing protection for power supply in reverse

3. There are power monitor circuit and watch dogcircuit for the CPU, and ensure that this module can operate at adversecircumstances.

4、With the indicator light of power supply, operation, receive andtransmit.

5、Can work by Modubus RTU protocol.

II、Technical parameters

1、Analog：12BIT ADC; Precision： 0.5% ;input type：voltage 0－5V.

2、Impedance Input：20MΩ.

3、Frequency：433MHz

4、Modulation: FSK

5、Output power： ≤500mW

6、Transmit current： <350mA

7、Receive sensitive：-123dBm (1200bps)

8、Receive current： <50mA

9、Antenna impedance：50Ω

10、Communication distance：Above 3Km (BER=10-5@1200bps，in the openair)

11、Work temperature：-35℃～+75℃(industrial)

12、Size：13.8*9.0*4.0CM
