Ⅰ.Function

  1 channel ON-OFF DI and DO transmitting timely. The 1 channel switching condition for the transmitting equipment can be output timely at the receiver equipment.That is the switching condition for the transmitting equipment is shut down, while the switching condition will be shut down at the receiver equipment; and the transmitting equipment is disconnect, while the receiver equipment will disconnect.

II. Feature:

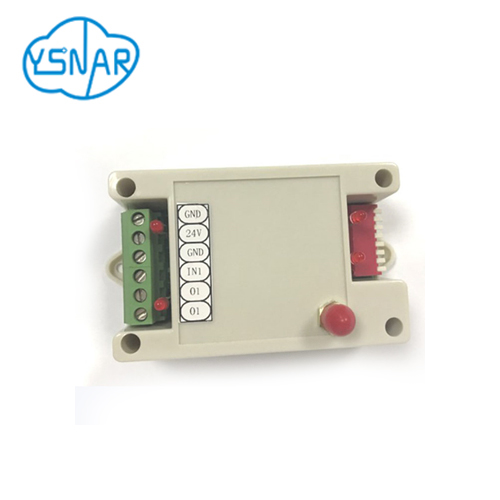

1, One relay output, with Max. load capacity of 220V / 5A,

2, One way switch input, support passive and active input.

When a passive input is made, it is only necessary to access a switch or button between I1 and GND. The open or disconnected state will be sent to the remote output module and be outputed.

When active input, the user needs to enter a high or low level at theI1 terminal, a high level corresponding to a disconnection, and a low level corresponding to close. Note that when no level is input, the receiver output is disconnected.

III. PerformanceIndex
