YS-C30P

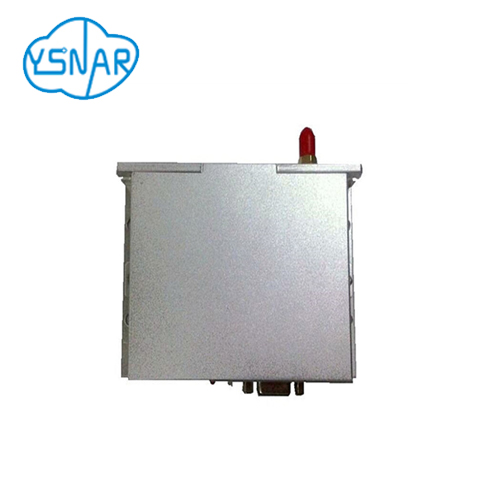

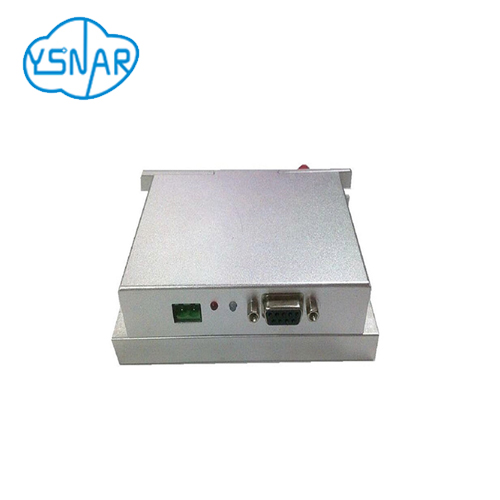

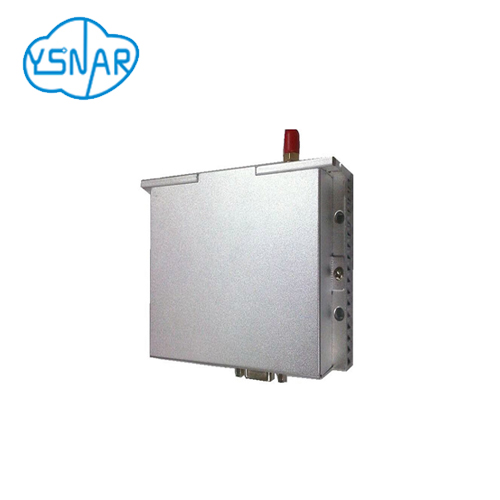

YS-C30P RF Modules
Item Code:

  •  Power output controllable by software:2W-10W adjustable
  •  Power supply: 9-36VDC
  •  Two interface at same time.RS232 &RS485, or RS485&TTL
  •  Frequency resetable in specific band.
  •  Pin 1/4/6/9 expandable
  •   High power, long transmission distance
  •  Transparent data transmission for all kindsof Micro-controller,PC,RS485 equipment and other devices.

Inquiry
Product Details

I. Features:

  •  Power output controllable by software:2W-10W adjustable
  •  Power supply: 9-36VDC
  •  Two interface at same time.RS232 &RS485, or RS485&TTL
  •  Frequency resetable in specific band.
  •  Pin 1/4/6/9 expandable
  •   High power, long transmission distance
  •  Transparent data transmission for all kindsof Micro-controller,PC,RS485 equipment and other devices.



II.Technical specification

PERFORMANCE

Power Output:

10W(Default)

RF Effective Rate:

1200/2400/4800/9600/19200bps

Space Channel:

1MHz(Default), 12.5/25KHz selectable

Bandwidth:

<25KHz

Receiver Sensitivity:

-123dBm@1200bps (1% BER)

NETWORKING

Networking Topology:

Point-to-point, point-to-multipoint

COMPATIBILITY

YS-300 and YS-200 series

POWER

Supply Voltage:

12V DC

GENERAL

Communication Mode:

Half-duplex

Frequency Band:

433MHz (400/450/470MHz optional)

Channel:

8/16/32

Interface:

RS485 & RS232, or RS485 & TTL

PHYSICAL PROPERTIES

Antenna Base:

50Ω,  SMA

Operating Temperature:

Industrial:-40℃~+80℃(TCXO)



Size :

18 mm* 16 mm * 15 mm



III.Application Field

* Automatic Meter Reading (AMR);

* Wireless alarm and securitysystems;

* Building automation, security systems, wireless monitor;

* Wireless data transmission,automatic data collection system;

* Wireless POS, PDA wirelesssmart terminal;

* RFtransmitter, Wireless electronic display screen and Queuing machine;

*Wireless telemetry; remote control and access control system;

* Wireless modem automobileinspection and four-wheel orientation;

* Wireless sensor, Industrial wireless remote control;

* Data communication in theaspects of railway, oil field, dock and army.

* LED display in thruway andpublic place;

* Point to multi-point wireless network.
